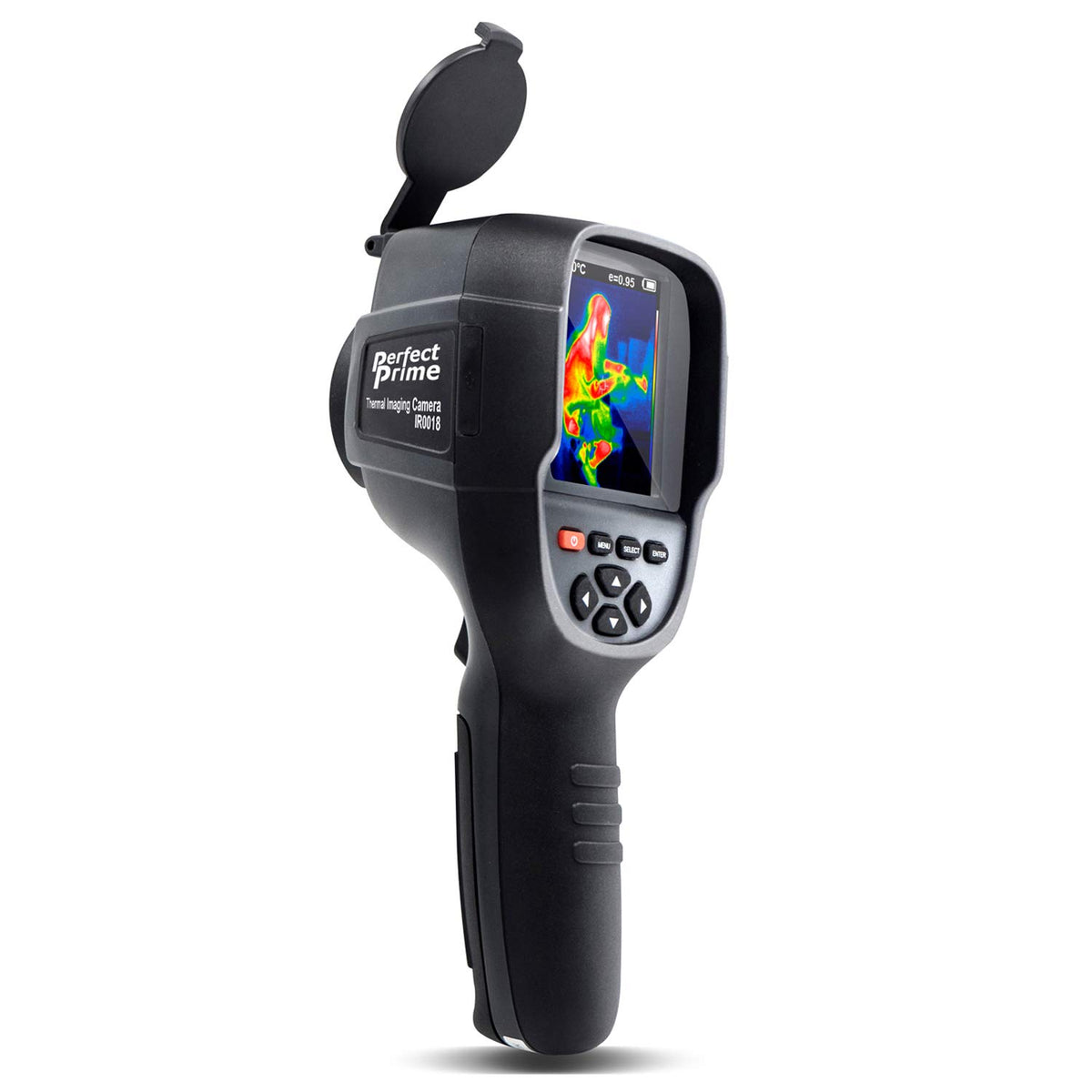

Infrared Thermal Imager & Visible Light Camera W515870
Infrared Thermal Imager & Visible Light Camera W515870
High Resolution Images: 220 x 160 IR pixels for clear thermal images on a large 3 2” display screen. View temperature readings accurately within ±2%.
Technical Specification: Operating range -4°F to 572°F (-20-300°C), Image Frequency 9 Hz, FOV/shortest focal length 35°×26°/4.0mm
Image Adjusting Features: 5 Color palettes for better analysis. 4GB integrated memory and thermal and visible blend for clearer image
Professional Applications: Affordable thermal imaging for professional services ranging from - hot and cold leaks, HVAC, animal, home and industrial inspection to electrical or components behind walls plus many more
Ergonomic and Comfortable: The design and weight of the camera enables users to comfortably hold and use the camera for extended periods of time. Large buttons for ease of use even with gloves on.
Enhanced Protection: 12 months standard with additional 12 months after product registration to ensure peace of mind
Perfect Prime IR0005 compact handheld thermal camera delivers exceptional thermal resolution for inspections and various other industries Water Leaks /Air Leaks /Roof Leaks Missing and Compromised Insulation HVAC Issues – Heating and Air-conditioning Electrical Hot Spots Underfloor Heating Plumbing Problems Stud and duct placement Mechanical Equipment Failures Solar Panel Evaluation Specifications Display 3 2' full angle TFT display IR sensor size 220 × 160 Digital camera 640 × 480 pixels Field of View/shortest focus length 35°×26°/4 0mm Thermal sensitivity 0 07°C Temperature range -4°F 572°F [ -20°C 300°C） Measuring accuracy 2% / 2°C Spectral range 8 14μm Emissivity 0 1-1 0 Image frequency 9Hz Focus Mode Fixed Color-palettes Spectra Iron Cool Black and White Power supply Built-in chargeable 18650 Ion battery USB Connector Type USB Micro-B Data transfer to and from PC external power Operation AC adapter 90-260V AC input 5V output to camera Operating temperature range 32 to 113°F [0°C to 45°C] Storage temperature -4 to 122°F [-20°C to 60°C] Operating Humidity Storage medium Built-in 3G [above 2 million images stored ] Size 140×80×28mm [5 5 x 3 1 x 1 1”] Weight 0 46lb [208g] Two years against manufacturing defects What’s in the box? Infrared camera Power supply/charger Printed documentation USB cable
| PerfectPrime IR0018 | PerfectPrime IR0019 | PerfectPrime IR0280 | PerfectPrime IR281 | PerfectPrime IR0005 | PerfectPrime IR0006 | |
|---|---|---|---|---|---|---|
| Thermal Resolution | 220 x 160 px | 320 x 240 px | 32 x 32 px | 205 x 156 px | 220 x 160 px | 320 x 240 px |
| Thermal Sensitivity | 0.07˚C | 0.07˚C | 0.15˚C | 0.065˚C | 0.07˚C | 0.07˚C |
| Temperature Range | -20 to 300°C, -4 to 572°F | -20 to 300°C, -4 to 572°F | -30 to 1000°C, -22 to 1832 °F | -40 to 330°C, -40 to 626°F | -20 t-20 to 300°C, -4 to 572°Fo 300°C, -4 to 572°F | -20 to 300°C, -4 to 572°F |
| Field of View (FOV) / Shortest Focus Length | 27° x 35°/ 0.5m | 27° x 35°/ 0.5m | 33° x 33°/ 0.1m | 35.4° x 26.8°/ 4mm | 56° x 42°35° x 26°/ 4mm/ 4mm | 56° x 42°/ 4mm |
| Battery | Rechargeable Lithium-Ion | Rechargeable Lithium-Ion | Rechargeable Lithium-Ion | Rechargeable Lithium-Ion | Rechargeable Lithium-Ion | Rechargeable Lithium-Ion |
| Image Overlay/Registration | ||||||
| Livestream Screen | ||||||
| Thermal Image Analyses Software |
